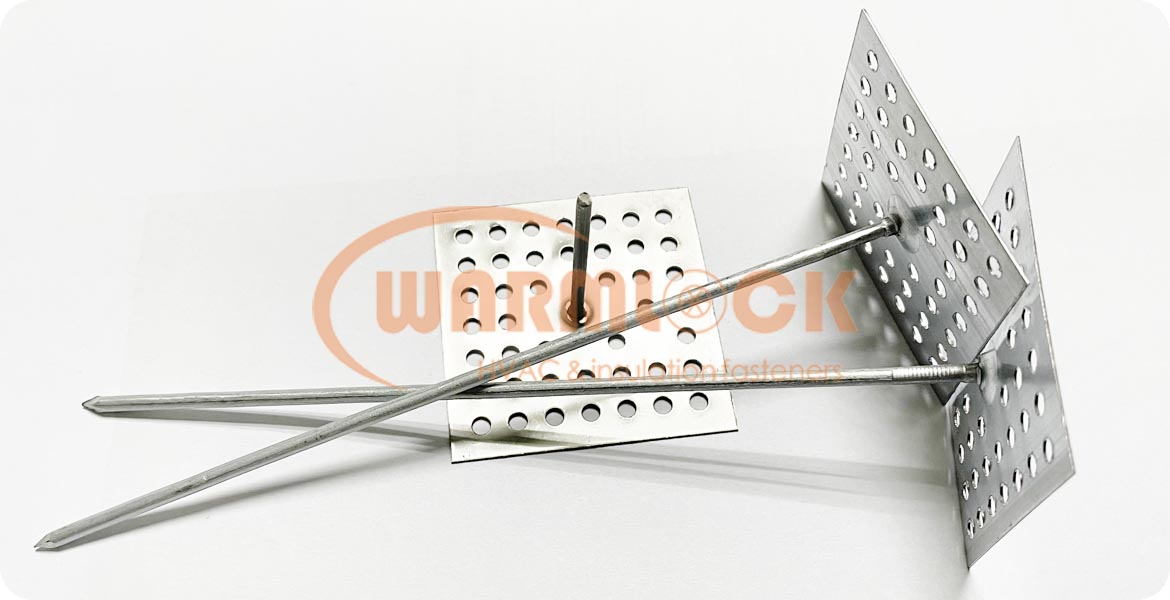

Perforated Base Insulation Hangers

Same as our lacing anchors and insulation quilting pins / nails, Warmlock also uses automated production for perforated base insulation hangers, with good production capacity and product stability. Good punch dies design and production process ensure that the pins are completely perpendicular to the base, strongly riveted, and there are no burrs on the edges.

Warmlock Perforated base insulation hangers are manufactured to affix insulation wool or foam on surface of metal, wood, concrete, composite material, or any other common material seen in industries of construction, manufacturing etc.. and applied a lot in HVAC duct lining, air ducts, metal buildings or wood ones or concrete ones, and usually go with rock wool, mineral wool, glass wool, ceramic wool, phenolic foam, etc.

Perforated Base Insulation Hangers

Warmlock Perforated base insulation hangers are with a large perforated base, that is specified in dimensions of 50 x 50 mm square as standard and in 0.5mm thickness. A larger base is made to enhance the bonding strength by enlarging the bonding area. And the perforated holes make it able to lock the anchors tightly in place by gripping the base on both its face and back with the liquid adhesive extruding through perforated holes and getting to the other side.

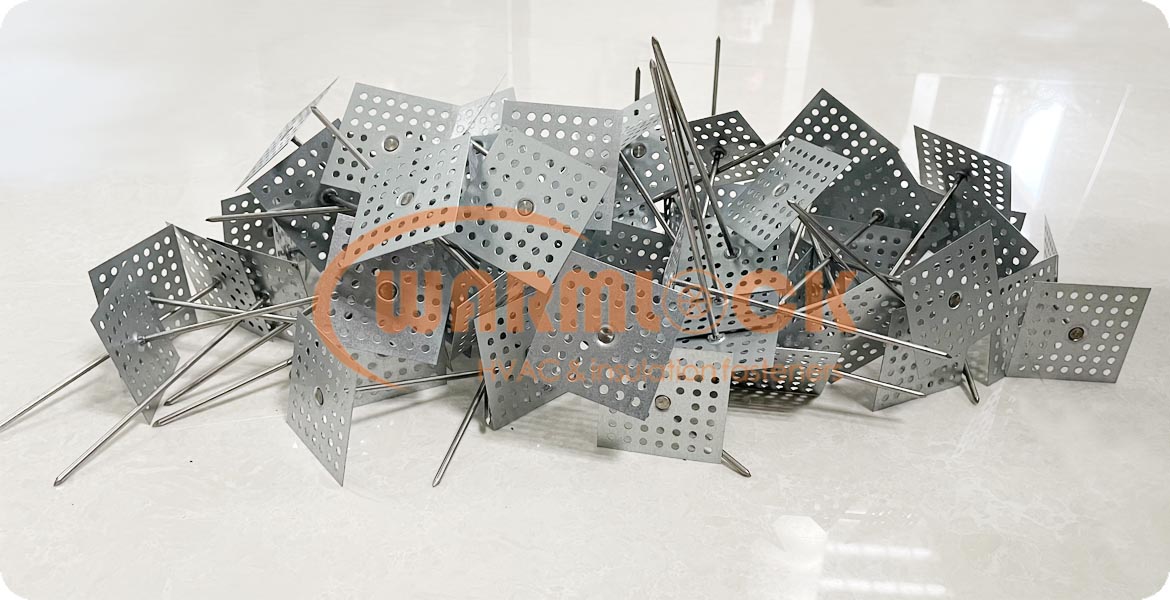

Perforated Base Insulation Pins

The base of Warmlock Perforated base insulation hangers are manufactured of stainless steel or galvanized steel as the majority. And the pins are of aluminum, stainless steel or galvanized steel, and in 12 gauge generally with a length range from 1.2 inches (30mm) to 8 inches (205mm).

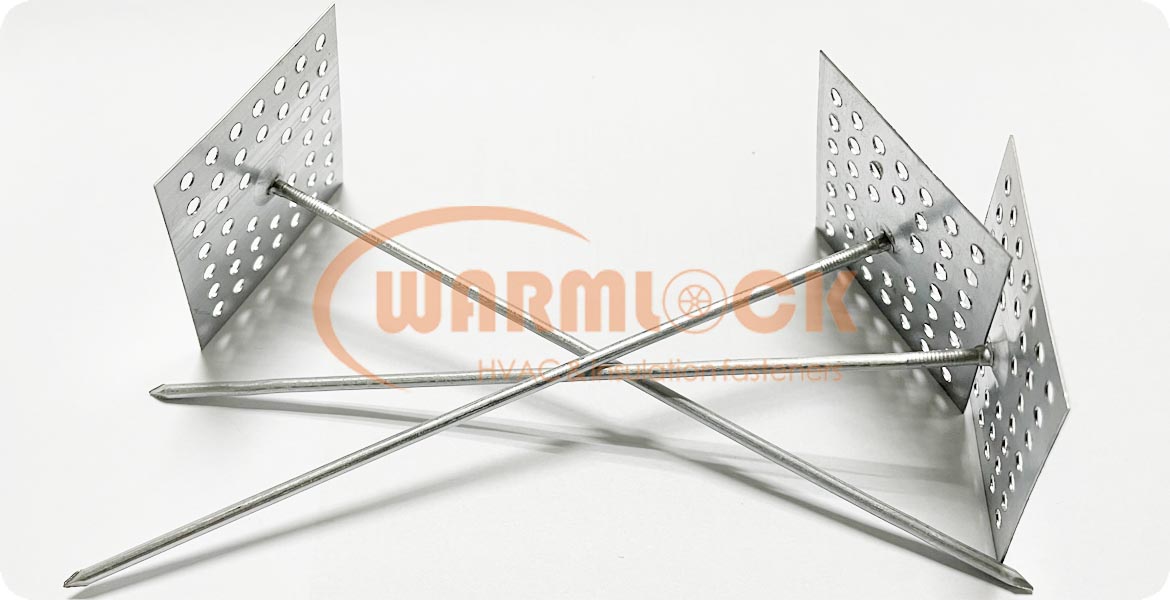

Perforated Base Insulation Anchors

Material of perforated base insulation hangers -

  • Stainless steel;
  • Galvanized steel;
  • Aluminium

Size of perforated base insulation hangers -

  • Side length of base: 50mm / 2";
  • Thickness: 0.5mm / 0.02";
  • Diameter of hole of base: 3.2mm / 1/8";
  • Quantity of hole of base: 44;;
  • Diameter of pin: 12ga / 3mm;
  • Length of pin: 1.2" ~ 8" / 30mm ~ 200mm.
